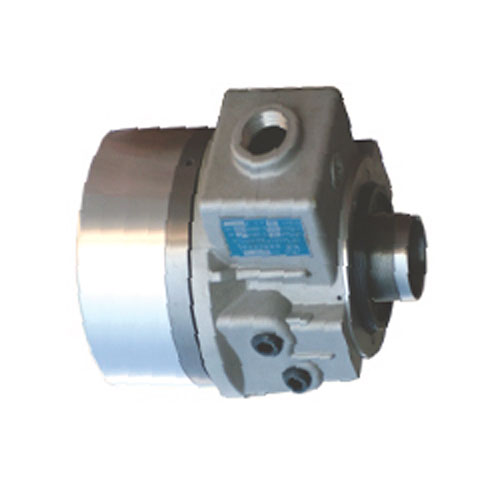

產品：P25C
產品特性:
■特點：
☆油缸采用優質鋁合金材料，體積小、重量輕，適應高轉速。
☆具有大通孔，可以通過棒料。
☆是數控車床理想的動力源。
■Specificity:
☆The cylinders are made of high quality aluminium alloy, with small volume, light weitht and suitable for high rotation speed.
☆The cylinders posses large thru-hole to accept bar-shaped workpieces.
☆I(lǐng)t is the ideal power source of the CNC lathes.
產品詳情

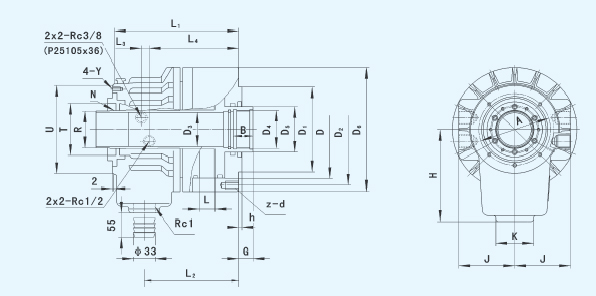

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
L1
|
L2
|
L3
|
L4
|
A
|
B
|
H
|
z-d
|
G
|
H
|
J
|
K
|
N
|
R
|
T
|
U
|
Y
|
|
max
|
min
|
|
P25105×36C
|
105
|
100
|
115
|
36
|
M42×1.5
|
48
|
136
|
174
|
128.5
|
11
|
120
|
88
|
25
|
5
|
12-M10
|
15
|
0
|
115
|
66
|
47
|
M44×1.5
|
42
|
64
|
106
|
M5
|
|
P25125×46C
|
125
|
100
|
130
|
46
|
M55×2
|
65
|
155
|
184
|
135
|
11.5
|
127.5
|
98
|
30
|
5
|
12-M10
|
15
|
0
|
115
|
76
|
47
|
M52×1.5
|
50
|
76
|
118
|
M5
|
|
P25155×52C
|
155
|
130
|
170
|
52
|
M60×2
|
70
|
191
|
191
|
142.5
|
12
|
135
|
110
|
30
|
5
|
12-M10
|
22
|
0
|
130
|
86
|
47
|
M58×1.5
|
56
|
85
|
137
|
M6
|
|
P25180×75C
|
180
|
160
|
190
|
75
|
M85×2
|
95
|
215
|
225
|
166.5
|
17.5
|
157
|
155
|
35
|
5
|
12-M10
|
25
|
0
|
160
|
101
|
47
|
M84×2
|
81
|
108
|
166
|
M6
|
|
P25205×91C
|
205
|
180
|
215
|
91
|
M100×2
|
110
|
240
|
248
|
181
|
21
|
168
|
165
|
35
|
5
|
12-M12
|
30
|
0
|
185
|
110
|
47
|
M99×2
|
96
|
122
|
188
|
M6
|
■性能參數 Characteristic Parameters
|
規格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
最大推拉力kN
Max. draw pull
|
凈重Kg
Net WT
|
|
P25105×36C
|
64.5
|
15
|
4.0
|
8000
|
24
|
8.6
|
|
P25125×46C
|
89
|
15
|
4.0
|
7000
|
33
|
12
|
|
P25155×52C
|
150
|
22
|
4.0
|
6200
|
56
|
17
|
|
P25180×75C
|
183
|
25
|
4.0
|
4700
|
66
|
26
|
|
P25205×91C
|
234
|
30
|
4.0
|
3800
|
88
|
33
|
|
