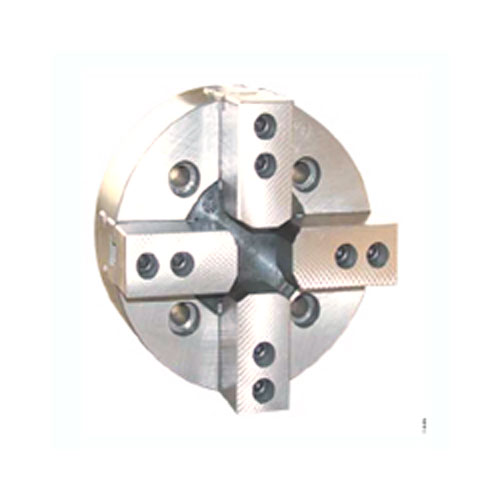

產品：K51F
產品特性:
■特點：
☆短圓柱連接形式。
☆適用于加工方形或其它異形工件。
☆性能可靠，經濟實用。
■Specificity:
☆Short cylindrical center mounting.
☆Suitable for processing all kinds of square and other irregular workpieces.
☆The chucks are economic practical and with high performance reliability.
產品詳情

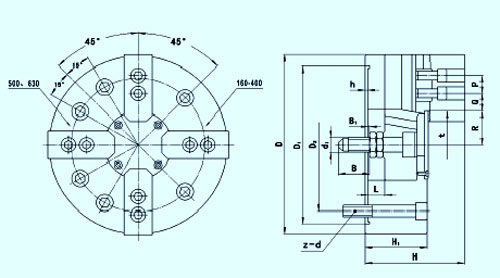

■尺寸參數 Dimension Parameters
|
規格D
Size
|
D1
|
D2
|
d1
|
H1
|
H
|
h
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
160
|
130
130
|
110
|
M16
|
70
|
(113)
117
|
4
|
20
|
16
|
6
|
38
|
33
|
30
|
1
|
-18
|
4-M10
|
|
200
|
165
|
130
|
M20
|
80
|
(131)
133
|
4
|
24
|
25
|
8
|
44
|
38
|
36
|
0
|
-23
|
4-M12
|
|
250
|
210
|
160
|
M22
|
95
|
（155）
153
|
5
|
28
|
31
|
10
|
57
|
50
|
39
|
2
|
-25
|
4-M14
|
|
320
|
270
|
200
|
M24
|
105
|
177
|
6
|
32
|
44
|
12
|
74
|
66
|
45
|
3
|
-27
|
4-M16
|
|
400
|
340
|
250
|
M24
|
115
|
（195）199
|
6
|
45
|
68
|
13
|
76
|
67
|
43
|
8
|
-26
|
4-M20
|
|
500
|
440
|
320
|
M30
|
125
|
219
|
7
|
50
|
92
|
13
|
95
|
85
|
60
|
7
|
-31
|
8-M20
|
|
630
|
560
|
400
|
M36
|
150
|
263
|
8
|
55
|
119
|
11
|
120
|
108
|
79
|
9
|
-36
|
4-M24
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping ra20-160nge
|
撐緊范圍
Jamming range
|
凈重Kg
Net WT
|
|
160
|
19
|
10
|
12
|
26
|
2800
|
20-160
|
35-160
|
12.5
|
|
200
|
23
|
12
|
20
|
45
|
2300
|
20-200
|
40-200
|
23
|
|
250
|
27
|
14
|
33
|
73
|
1800
|
30-250
|
50-250
|
35.5
|
|
320
|
30
|
16
|
42
|
93
|
1300
|
35(50)-320
|
50(65)-320
|
55
|
|
400
|
34
|
18
|
58
|
120
|
800
|
35(65)-400
|
50(80)-400
|
88
|
|
500
|
38
|
20
|
100
|
220
|
600
|
40(105)-500
|
60(125)-500
|
140
|
|
630
|
45
|
24
|
130
|
289
|
400
|
50(140)-630
|
70(160)-630
|
—
|
產品備注
※表中()數值適用于K51FB型卡盤。
※The values on the above table’s parentheses is for K51FB chuck.
|
